Sheet Metal Fabrication
Sheet metal fabrication turns flat metal sheet (0.5–6mm typical, up to 20mm with heavy equipment) into bent, welded, and assembled parts. Laser cutting handles the flat pattern, press brake bends the flanges, welding joins the pieces. The default process for enclosures, brackets, frames, panels, and structural parts where forming is faster and cheaper than machining from solid. For design best practices, see our Sheet Metal DFM Guidelines
Sheet Metal Fabrication Capabilities
| Feature | Description |
| Maximum Part Size | 3000×1500mm (laser cutting)/Custom sizes available |
| General Tolerances | Metals: ISO 2768-m (bending)/Laser cut parts: ±0.1mm typical |
| Precision Tolerances | To drawing specifications and GD&T annotations, tighter than ±0.1mm achievable |
| Material Thickness Range | 0.5mm–20mm |
| Standard Lead Time | 5 business days (simple parts as fast as 1 day) |
| Processes | Laser Cutting, Punching, Press Brake Forming, Welding, Hardware Insertion |
| Post-Processing | Surface Finishing |
| Type | Material | Service | Process | More Info |
|---|---|---|---|---|
| Aluminum | 5052-H32 | Sheet Metal Fabrication | Cutting / Forming | Data Sheet | Selection Logic |
| Aluminum | 6061-T6 | Sheet Metal Fabrication | Cutting / Forming | Data Sheet | Selection Logic |
| Stainless Steel | SUS304 | Sheet Metal Fabrication | Cutting / Forming | Data Sheet | Selection Logic |
| Stainless Steel | SUS430 | Sheet Metal Fabrication | Cutting / Forming | Data Sheet | Selection Logic |
| Cold-Rolled Steel | SPCC / ASTM A1008 (CS Type B) | Sheet Metal Fabrication | Cutting / Forming | Data Sheet |
| Galvanized Steel | SGCC / ASTM A653 G90 | Sheet Metal Fabrication | Cutting / Forming | Data Sheet |
| HSLA Steel | HC340 / ASTM A1011 HSLAS 340 | Sheet Metal Fabrication | Cutting / Forming | Data Sheet |
| HSLA Steel | HC420 / HSLAS 420 | Sheet Metal Fabrication | Cutting / Forming | Data Sheet |
| Structural Steel | SAPH440 / ASTM A1011 SS Gr.50 | Sheet Metal Fabrication | Cutting / Forming | Data Sheet |
(Coming Soon)
Materials Supported
Common Metal Materials

Aluminum sheet is light, bends clean, and takes anodizing well. 5052 is the go-to for enclosures, panels, and brackets, it bends without cracking even at tight radii. 6061 is harder and stronger but splits on sharp bends; use it where the flat features matter more than the formed ones. 7075 is rarely worth it in sheet metal, the strength gain doesn’t justify how poorly it forms.

Stainless steel sheet holds up in wet, corrosive, or food-contact environments where mild steel would rust through. 304 covers most applications: enclosures, brackets, and structural panels. 316 adds molybdenum, which matters in saltwater exposure or chemical handling. Stainless work-hardens fast; bend angles need to account for springback, and tight radii crack more readily than on mild steel.

Carbon steel (mild steel) is the default for structural sheet metal parts where corrosion isn’t a concern. It bends predictably, welds without fuss, and costs less than stainless or aluminum. Most brackets, frames, and enclosures that will be powder-coated or painted go in mild steel. SPCC and Q235 are the grades that show up most in fabrication.

Brass sheet machines and forms well, and the surface finish holds up without coating. It shows up in decorative panels, electrical terminal plates, and parts where low friction matters at contact points. Springback on brass bends is moderate, tighter than steel but looser than aluminum.

Copper sheet is used where electrical or thermal conductivity is the main requirement, bus bars, heat spreader plates, and grounding straps. It’s soft and forms without cracking, but scratches easily. Leave a protective film on until final assembly.
Material Selection Guidance
Pick the material based on what the part actually needs to do. Mild steel and galvanized steel keep cost down on brackets, enclosures, and structural frames. Stainless 304 or 316 handles wet environments and chemical exposure where mild steel would rust. 5052 bends without cracking on tight radii; 6061 is harder but machines cleaner after forming. Titanium shows up in aerospace brackets or medical hardware, for most sheet metal work it’s overkill.
Lock in the material before finalizing bend radii and finish specs. Weldability and surface treatment interact. Changing material late shifts the whole process.

Tolerances & Precision
Not every bend and hole needs a tolerance callout. Laser-cut holes hold ±0.1mm without extra cost. Bent flanges drift more, if that dimension matters, call it out on the drawing.
| General Tolerances | Metals: ISO 2768-m (bending); Laser cut parts: ±0.1mm typical |
| Precision Tolerances | Can manufacture and inspect to drawing specifications and GD&T annotations, including tolerances tighter than ±0.1mm |
| Min Material Thickness | 0.5mm |
| Max Material Thickness | Up to 20mm (depending on material and process) |
| Min Hole Diameter | Equal to material thickness (min 1mm) |
| Maximum Part Size | 3000×1500 mm (laser cutting); custom sizes available |
| Minimum Bend Radius | 0.5× material thickness |
| Production Volume | Prototyping: 1-100 pcs Low volume: 101-10,000 pcs High volume: Above 10,001 pcs |
| Lead Time | 5 business days for most projects. Delivery of simple parts can be as fast as 1 day. |
Surface Finishing Options
Design Guidelines
A part can be perfectly foldable on paper and still come back with cracked bends, misaligned holes, or a cost three times the estimate. Good design for sheet metal means the flat pattern nests cleanly, the bends don’t fight the material grain, and the holes land where a punch or laser can actually hit them.
| Core DFM Principles | Better sheet metal design means: – bend radius matched to material thickness – hole diameter larger than material thickness – consistent bend direction where possible – relief cuts at corners to prevent tearing – tolerances called out only on features that actually matter |
| Bend Radius | Minimum inside bend radius is typically 1× material thickness for mild steel and stainless, 1.5× for aluminum. Going tighter risks cracking the outer face, especially on 6061. Larger radius costs nothing extra and reduces scrap. |
| Hole Size and Placement | Small holes and deep holes are common machining cost drivers. The design guidance Hole diameter should be at least equal to material thickness. Smaller punches deflect and break under press load. Edge distance from hole to nearest bend should be at least 2× material thickness, smaller punches deflect and break. Keep holes at least 2× material thickness from any bend line. Holes too close to a bend distort when the flange forms. |
| Bend Relief | Add bend relief cuts at corners where two bends meet. Without relief, the metal tears or warps at the intersection. Relief width should match material thickness; depth should clear the bend zone. |
| Flange Length | Minimum flange length is around 4× material thickness. Shorter flanges can’t be gripped by the press brake die and produce inconsistent angles. |
| Avoid Unnecessary Precision | Sheet metal formed parts hold ±0.1mm on laser-cut features and roughly ±0.5° on bend angles under standard tooling. Calling tighter tolerances on bent flanges drives up inspection time and scrap rate without improving function in most assemblies. Mark only the dimensions that actually affect fit or function. |
Typical Applications
Concept Models

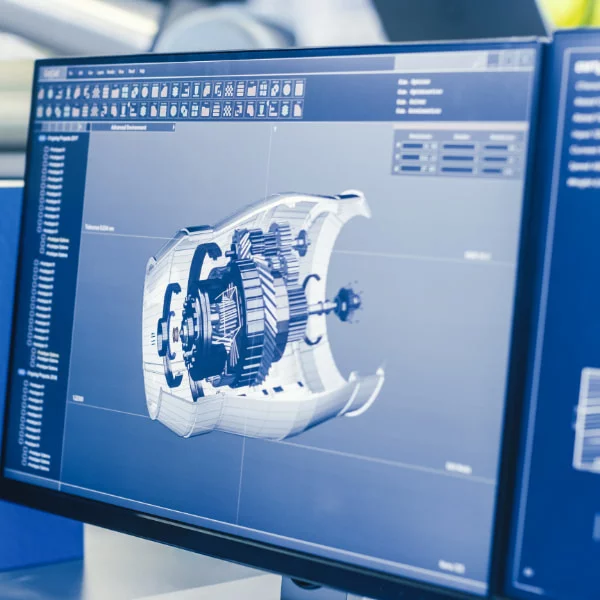

A CNC machined concept model helps teams review part geometry against engineering drawings. Use it during prototype development to check form, accessible features, and design changes before production.
Functional Prototypes
CNC prototyping produces functional aluminum housing parts for checking mounting features and component interfaces. Prototype manufacturing in the intended material helps engineers identify changes before a production run.
Engineering Validation
Dimensional inspection compares CNC machined features with the drawing. These measurements support design verification of critical dimensions before assembly or further production.
Fit & Assembly Testing
Fit testing checks how a mating pin enters a machined bore. A trial mechanical assembly can reveal alignment, insertion, or clearance issues before parts are ordered in larger quantities.
Market Testing Samples
Small batches of near-final CNC machined product samples give customers physical parts for product evaluation, fit checks, and feedback before broader product testing or launch decisions.

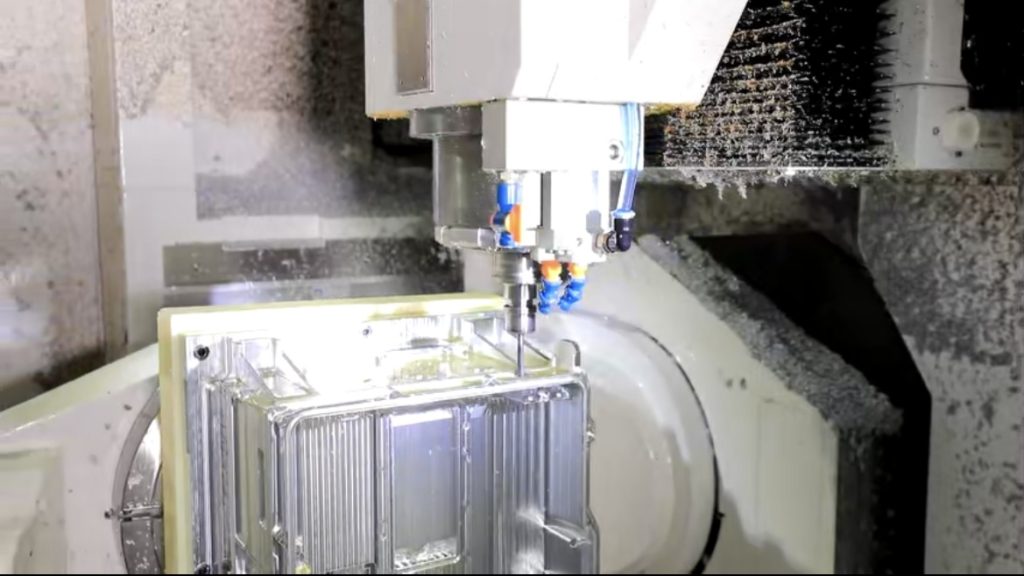

Bridge Production
Low volume manufacturing keeps CNC machined parts available while production plans and bridge tooling are finalized. Repeatable small batches help teams move from prototype to production.
Equipment & Capacity
Sheet metal fabrication runs through several operations, from a flat blank to a finished assembly. Laser cutting shapes the blank; punching adds repeated features; press brake forming makes the bends. Welding, hardware insertion, and finishing follow where the drawing calls for them. The sequence is reviewed around material thickness, part geometry, and assembly requirements.
Laser Cutting
Sheet metal laser cutting produces flat profiles, slots, and hole patterns. Our listed cutting envelope is 3000 × 1500 mm, with material thickness up to 20 mm subject to alloy and process review. A ±0.1 mm target applies to suitable flat features; tighter or sensitive dimensions need drawing review.
Punching
Sheet metal punching makes repeated holes and cutouts in flat blanks. CNC turret tooling can form features such as louvers and knockouts where the tool and material permit. Tool access, hole spacing, and batch size decide whether punching fits the job.
Press Brake Forming
CNC press brake bending forms flanges, channels, brackets, and enclosures. Bend radius, material thickness, and flange length must suit the tooling. Holes close to bend lines need special attention because forming can pull them out of shape.
Welding
Sheet metal welding joins cut and formed parts into assemblies. MIG and TIG processes are selected around the metal, thickness, and joint design. Weld sequence and fixturing matter on thin panels, where heat can pull an otherwise accurate part out of alignment.
Hardware Insertion
PEM nuts, studs, and self-clinching fasteners add threaded attachment points to sheet metal parts. Installation requires the correct hole size and sheet hardness for the specified fastener. Hardware close to an edge or bend needs a clearance check before the blank is cut.
Surface Finishing
Sheet metal finishing includes powder coating, aluminum anodizing, zinc plating, and brushed surfaces. Coating build-up can change a hole or mating fit. Specify the finish and any masked areas on the drawing before the parts move to coating.
Quality Control Flow
View our ISO 9001:2015 Certificate →Incoming Inspection
Incoming quality control starts with the purchase order and material certificate. We check the specified alloy, temper, stock dimensions and material identification before machining. Any mismatch needs review before the material is released to production.
In-Process Inspection
First article inspection checks the initial part against the drawing before a production run continues. In process inspection then focuses on critical dimensions, workholding and changes that could affect part consistency. Tool wear or a setup change may call for another check.
Final Inspection
Finished parts are checked against the drawing for specified dimensions, hole locations and mating features. CMM inspection and suitable hand gauges support dimensional checks. Inspectors also look for burrs, damaged edges and surface defects before release.
Documentation and Traceability
Material certificates, job records and inspection results connect the finished part to its production lot. This supports material traceability when dimensions or material identity need to be checked later. Request a first article inspection report with your RFQ if the project requires one.
Sheet Metal Fabrication: Common Questions
What sheet metal thicknesses can you fabricate?
Most enclosures, brackets, and panels use sheet from 0.5 to 6 mm thick. Cutting thicker stock, up to 20 mm, requires a separate check of the alloy, part size, and process. Bending capacity also depends on the flange length and tooling. Send the specified grade and thickness with your drawing.
What files are needed for a custom sheet metal fabrication quote?
Send a STEP model for formed geometry or a DXF file for a flat pattern, along with a PDF drawing. The drawing should identify material, thickness, quantity, bends, threaded hardware, finish, and any dimensions that control assembly fit. An assembly drawing is needed for a multi-part weldment.
What tolerances can you hold for precision sheet metal fabrication?
Our published baseline is ±0.1 mm for suitable flat laser-cut features and ±1° for bend angles. Dimensions measured across bends need a separate review because springback and multiple forming operations add variation. Mark the hole positions, flange dimensions, and datums that must meet tighter limits.
Can sheet metal laser cutting and press brake bending be combined?
Yes. Laser cutting produces the blank, and a press brake forms the specified flanges. Holes and slots near a bend can distort as the metal stretches. Include bend radii and relief details in the model so the cutting pattern and forming sequence can be checked together.
Can you make sheet metal prototypes with no minimum order?
Orders can start at one part. Sheet metal prototyping uses cutting and forming for designs that do not need dedicated stamping dies. Quote the prototype quantity and the planned production quantity together to see how setup and finishing costs affect the unit price.
Can you produce welded sheet metal assemblies?
Yes. Sheet metal assembly work includes TIG or MIG welding where the joint and material permit it. Provide the assembly drawing, weld symbols, joint sizes, and dimensions to inspect after welding. Mounting faces or holes needing post-weld machining should be identified before quoting.
Can you install PEM nuts and other self-clinching fasteners?
Yes. We install compatible PEM nuts, studs, and standoffs in sheet metal parts. The fastener part number, sheet hardness, thickness, hole size, and distance from a bend all affect installation. Put the hardware specification on the drawing so those conditions can be reviewed.
What sheet metal finishing options are available?
Sheet metal finishing options include powder coating, aluminum anodizing, zinc plating, and brushed surfaces. Match the finish to the base metal and exposure conditions. State the coating or color requirement on the drawing and mark holes, threads, or mating surfaces where added coating thickness affects fit.
Ready to Quote Your Sheet Metal Part?
Upload your STEP or DXF file and get a DFM review + quote within 12 hours. No tooling cost. Minimum 1 part.
