Shear Stress in Machined Parts: Formula, Failure Modes, Fasteners and Design Checks

Dewey Wu, General Manager at EPOC CRAFTER

Dewey Wu General Manager & senior mechanical engineer at EPOC CRAFTER, 15 years in design engineering, quality, and metallurgy. Hands-on across CNC machining, metalwork, sheet metal, and prototyping (subtractive + 3D printing).

Dewey Wu on LinkedIn

Shear stress is the force component acting parallel to a resisting section divided by that section’s area. The direct shear stress formula τ = V/A gives average stress only when the force path and effective area are known.

For machined bolts and pins, the practical questions are shear-plane location, hole contact, load sharing and joint slip. Shafts carrying torque require a torsional stress model.

Contents

1. What Is Shear Stress? Formula, Symbol, Units and Calculation

For a defined direct-shear section, τ denotes average shear stress, V is the transferred shear force, and A is the physical resisting area. This shear stress equation is an area-average idealization.

τ = V / A

SymbolMeaningSI unitDecision use
τAverage direct shear stressMPa or N/mm²Compare demand with a valid material or joint capacity.
V or FShear force or shear loadNUse the force actually transferred through the checked plane.
AResisting shear areamm²Use the physical section that can slide or fracture, not an arbitrary nominal area.

Because 1 N/mm² equals 1 MPa, common shear stress units can be written as either N/mm² or MPa. A 20,000 N shear load over 100 mm² therefore gives 200 MPa average shear stress. This shear stress calculation is simple enough to do by hand; a shear stress calculator can automate the arithmetic, but it cannot decide which plane or area is physically carrying the load.

1.1 Average and Direct Shear Stress: Choosing the Shear Area

Direct shear stress uses an average stress over an assumed plane. It does not reproduce the local shear stress distribution around a hole, thread run-out, notch, shoulder or contact edge. For a solid round pin or plain bolt shank, one shear plane uses the circular section area. Two shear planes use two such sections only when both planes exist and the geometry supports load sharing.

A = πd² / 4     |     A_double = 2(πd² / 4)

Thread location changes the result. A bolt shear calculation based on nominal diameter can overstate area when the shear plane crosses the threaded section. For a double shear bolt with both planes through the plain shank, the plain-shank diameter is the relevant first-pass area. For threads in the plane, use the effective section required by the applicable fastener design method.

For machined features, the calculation should be tied to the drawing. The machined hole DFM guidelines help engineers evaluate hole geometry, edge distance and manufacturability alongside the joint load path.

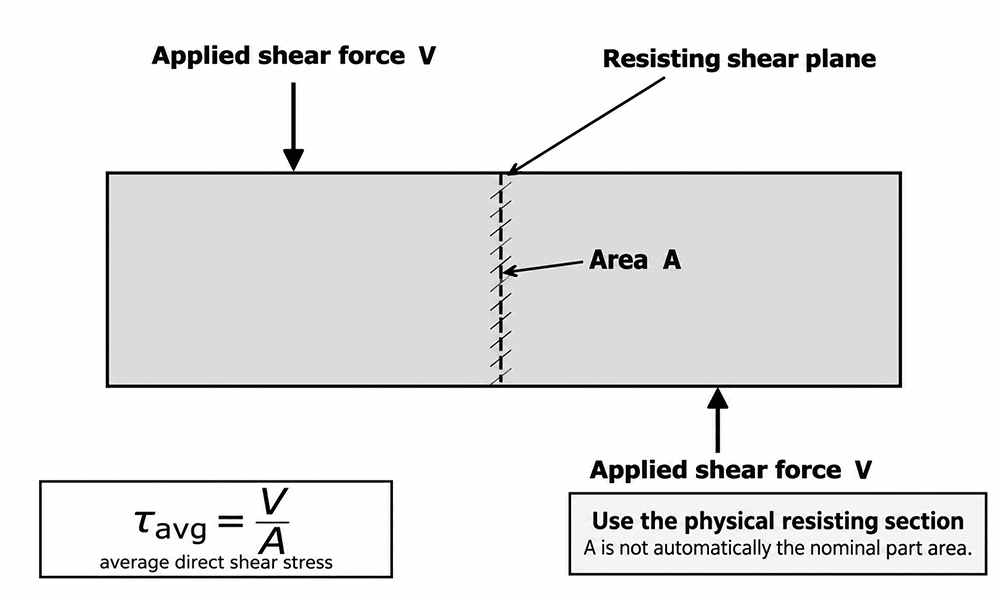

Direct shear diagram showing average shear stress across a resisting plane with two equal forces.

2. Shear Force, Shear Stress, Shear Strain and Shear Strength

The table separates applied load, deformation, stiffness and material or connection capacity. A shear force formula comes from equilibrium; a material’s shear modulus comes from its elastic response.

QuantityMeaningTypical unitUse in a design check
Shear force / shear loadExternal transverse load to be transferredNDefines the demand before geometry is considered.
Shear stressLoad divided by a resisting areaMPaChecks demand on a selected shear plane.
Shear strainAngular deformation caused by sheardimensionlessDescribes deformation, not capacity.
Shear modulus / modulus of rigidityElastic relation between shear stress and shear strainGPa or MPaUsed for elastic shear deformation.
Shear strengthMaterial or connection resistance under stated conditionsMPaProvides capacity only when the source and condition are valid.

2.1 Shear Force vs Shear Stress, and Normal Stress vs Shear Stress

Shear force is an external load (N); shear stress is the corresponding sectional demand (MPa). In the comparison shear stress vs shear strain, strain records angular deformation, not load-bearing capacity. Normal stress acts perpendicular to the section, while shear stress acts along it. A preloaded bolt may carry axial tension while its connection transfers transverse load.

The shear modulus G relates elastic stress and angular strain γ within the linear elastic regime:

τ = Gγ

This stiffness relation does not supply a material failure limit or an allowable shear stress.

2.2 Shear Strength, Shear Fracture and Allowable Stress

Shear strength is a specified resistance, while shear stress is calculated demand. Shear yield strength, ultimate shear strength and allowable shear stress require an identified grade, condition, test or design method. For example, the shear strength of steel and shear strength of stainless steel vary with alloy, processing condition and test basis. No universal tensile-to-shear conversion or factor of safety applies to all materials and joints.

That boundary is especially important when reading a material certificate or handbook. The EPOC CRAFTER guide to yield versus tensile strength explains how these properties affect material selection and structural design. The same discipline applies to shear strength vs tensile strength: use a documented relationship only when the material model, specification or design standard provides one.

Bearing deformation, hole growth or frictional slip can govern a connection before the fastener fractures in shear.

3. Single Shear vs Double Shear and Shear Pin Checks

For a solid round pin, each resisting plane has area A = πd²/4. The double shear formula τavg = V/(2A) applies only to two active planes with credible load sharing. A diameter-only chart for a double shear pin does not establish the full connection capacity.

ConfigurationResisting area for a round pinAverage stressUse only when
Single shearA = πd²/4τ = V/AOne physical shear plane carries the checked load.
Double shear2A = 2(πd²/4)τ = V/(2A)Two planes carry the load and the assumed sharing is credible.
Thread in shear planeNot automatically πd²/4Use the effective section required by the design methodThread geometry lies in the resisting plane.
Clearance or misalignment presentNominal area may still be used for first-pass pin shear stressAdd bearing, bending and contact checksThe average result is treated as screening, not full joint capacity.

3.1 What Is Double Shear, and Why Is It Not Automatically Twice the Joint Capacity?

Two equally loaded shear planes halve the average pin stress compared with one plane at the same total force and diameter. Joint capacity does not necessarily double: clearance, ear alignment, contact deformation, bending and fatigue can shift load between the planes.

A lap joint with an offset load may develop pin bending; a clevis with unequal ear reactions needs an individual bearing assessment.

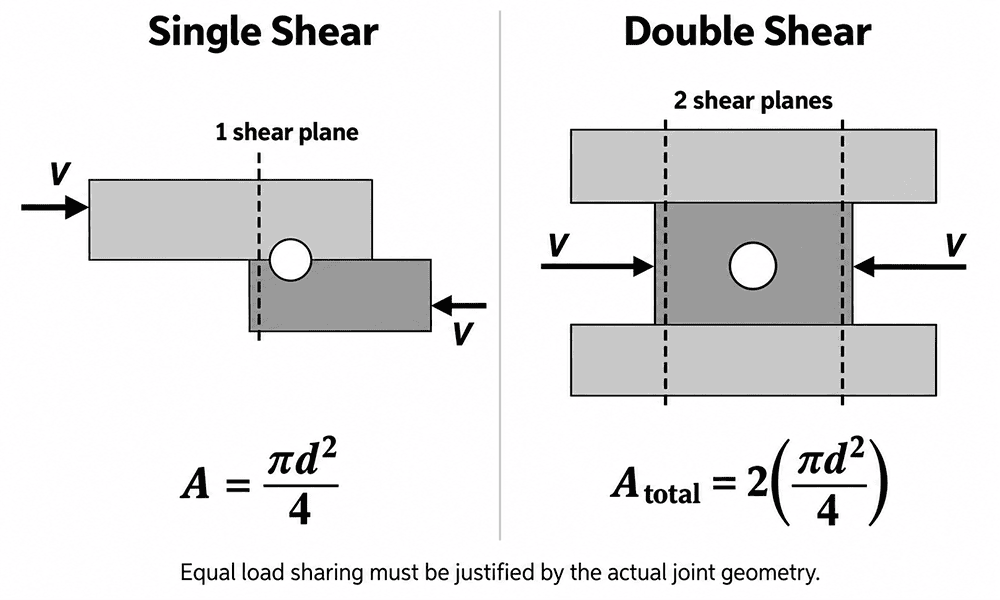

Diagram of single and double shear planes showing loading directions.

3.2 EPOC CRAFTER Case: Average Bolt Shear Was Not the Controlling Problem

An anonymized EPOC CRAFTER industrial-automation clevis used a partially threaded M12 × 1.75 property class 10.9 bolt as the pivot. Both shear planes crossed the plain shank. The measured minimum shank diameter was 11.88 mm, so the total double-shear area was 221.7 mm². The nominal reversing load was ±22 kN, and an in-line load cell recorded a 38.0 kN peak during actuator deceleration.

τ_avg = 38,000 / 221.7 = 171 MPa     |     τ_avg at 22 kN = 99 MPa

The original hand calculation stopped at nominal double shear stress. Service evidence pointed elsewhere. Before service, the three holes measured 12.15, 12.18 and 12.16 mm against an 11.88–11.90 mm shank. After about 180,000 reversing cycles, the center-lug hole measured 12.24 mm, with polished witness bands, fretting and directional contact marks. The bolt had not fractured.

For two assumed effective friction interfaces, μ = 0.15 and a reported 48.1 kN clamp load give a conditional slip screen of 2 × 0.15 × 48.1 = 14.43 kN. This is not a measured connection slip limit: retained preload, actual friction faces, interface state and pivot motion determine whether the model applies. The observed failure mechanism was repeated bearing contact with clearance.

The redesign introduced a Ø14 shoulder bolt, Ø14 H7 bores and improved axis and face controls. At a 42 kN bench proof load, lateral movement decreased from 0.31 to 0.07 mm. After 250,000 production cycles, the reported maximum post-service bore was 14.021 mm, with no new directional elongation. These observations apply to the recorded load spectrum and 18–34 °C environment, not to an unrestricted fatigue life.

EPOC CRAFTER shop-floor data: case SS-CLEVIS-12-01. Measured dimensions, load-cell data, clamp-load trials, CMM/bore-gauge inspection and proof-load displacement are from the completed internal case record.

3.3 Pin Joint Failure Modes: Shear, Bearing, Bending, and Tear-Out

The absence of bolt fracture does not close the failure review. Check lug tear-out, block shear failure, net-section rupture, local plasticity, fretting wear, fretting fatigue and remaining ligaments at the center lug and both ears. The bearing stress formula p = F/(dt) gives projected average demand. ASTM E238 measures metallic specimen bearing response; it does not certify the assembled clevis.

Combined loading: bending and shear stress

The 38.0 kN force acting at a 2.0 mm offset creates a 76 N·m external moment. Critical pin-section bending moment still requires actual support spacing, contact widths and reactions. Once M is known, a circular-section bending screen uses σb = 32M/(πd³), followed by the relevant combined-stress and fatigue criteria.

Hydraulic cylinder clevis applications

A hydraulic cylinder clevis and hydraulic cylinder pin also demand clearance, alignment, surface condition and alternating-load checks. Precision pins, custom clevis pins and hardened steel pins need documented grades, heat treatments and dimensions before sizing or procurement decisions.

3.4 Worked Example: Complete M12 Clevis Joint Verification

Use this calculation table as the single numerical reference for the M12 case. Units are N, mm, MPa and N·mm unless stated otherwise; projected bearing and equal ear loading remain explicit modelling assumptions.

Failure modeCalculated demandRequired acceptance basisDecision and record
Pin shearA2=2π(11.88)²/4=221.69 mm²; τ=38,000/A2=171.4 MPaFastener-specific shear strength and design factorsCompare with approved rated capacity; retain section and lot evidence
Center-lug bearing38,000/(11.88×12)=266.6 MPaLug alloy/condition and bearing resistanceRecord center-bore geometry and criterion
Each outer-ear bearing19,000/(11.88×8)=199.9 MPaPer-ear bearing limit and real reaction split19 kN each assumes equal sharing
Pin bending38,000×2=76,000 N·mm external momentActual pin span, reaction model, allowable combined stressCalculate critical section moment from verified supports
Joint slip2×0.15×48.1=14.43 kN idealizedμ source, two effective faces, minimum residual preloadConditional estimate; review articulating interface
Lug tear-out and net sectionRequires edge distance and ligament dimensionsLug material limit-state methodShow cross sections and individual ear geometry
Reversing fatigueWear observed about 180,000 cycles; 250,000 cycles after redesignSpectrum, acceptance wear limit, sample sizeReport test method and measurement resolution
42 kN proof observationReported lateral displacement 0.31→0.07 mmFixture, calibration, allowable displacementAttach trace and approved procedure

Free Download: Shear-Loaded Pin & Bolt Joint Design Verification Toolkit

Average shear stress alone cannot verify the safety or reliability of a machined pin or bolted joint.

Use our free Shear-Loaded Pin & Bolt Joint Design Verification Toolkit to calculate pin shear and lug bearing stresses, screen bending and clearance risks, identify missing engineering evidence, and define critical manufacturing and inspection requirements.

What’s included:

  • Editable Excel joint verification workbook
  • 5-page engineering design and inspection checklist
  • Manufacturing RFQ and CTQ requirements template

Download the Free Engineering Toolkit

Pin & Bolt Shear Verification Toolkit

Calculate pin shear and lug bearing stresses, review bending and clearance risks, and document the manufacturing and inspection requirements needed for your joint design.

Download the Pin & Bolt Shear Toolkit for the editable Excel workbook, engineering checklist and RFQ requirements template.

4. Shear Stress in Pins and Shafts

A pin crossing lugs is commonly checked for transverse shear, bearing and bending. A transmitting shaft is checked for torsion.

4.1 Bearing Stress, Hole Fit and Pin Load Sharing

A first-pass bearing stress uses the projected contact area between a pin or bolt and the loaded plate or lug:

p = F / (d t)

The equation reports average projected bearing stress. Real contact pressure depends on hole clearance, lug thickness, contact position and deformation. The worked M12 table gives the center-lug and per-ear results, including its equal-reaction assumption.

The fit and alignment that create this load path are manufacturing requirements. Refer to ISO 286 clearance fits when specifying hole-shaft relationships. Apply the relevant CNC machining tolerances to define dimensional and geometric acceptance requirements separately.

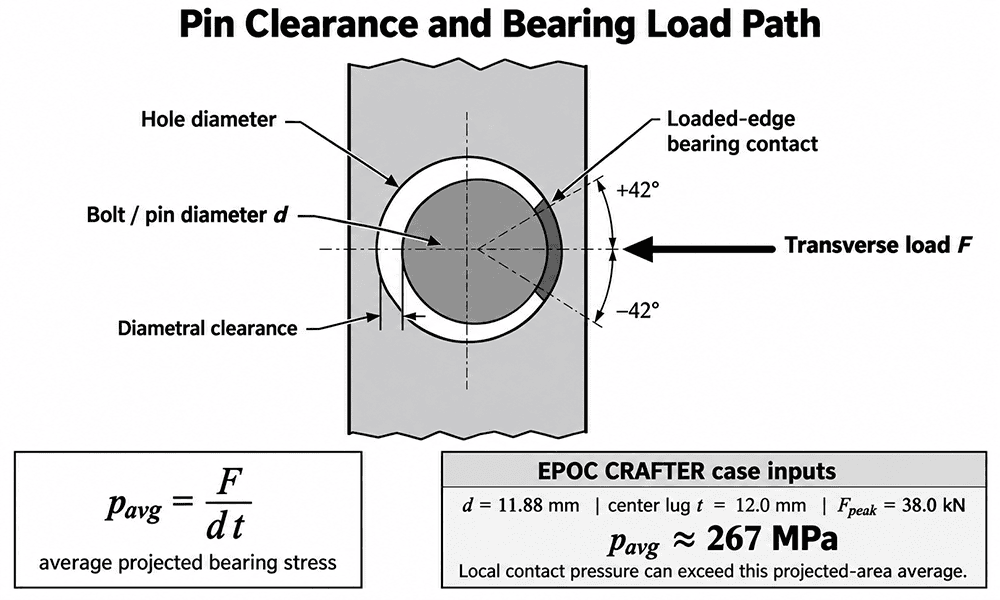

Bolt bearing stress and hole clearance in a shear-loaded clevis joint

4.2 Torsional Shear Stress in Shafts

For a solid circular shaft carrying torque T, the torsional shear stress formula is τ(r) = Tr/J, where J = πd⁴/32. Its maximum shear stress occurs at the outer surface. This torsional stress formula belongs to the torsion formula family for circular shafts; pin transverse shear uses a different load path.

τ = Tr / J     |     solid round shaft: τ_max = 16T / (πd³)

For simultaneous torsion, bending or axial load, evaluate combined stresses under the selected material failure criterion.

5. Bolt Shear Stress, Bolt Preload, Slip and Bearing

5.1 Grade 10.9 Bolt Properties and Physical Shear Area

For M12 × 1.75, the nominal tensile stress area is about 84.3 mm². The measured 11.88 mm plain shank provides about 110.85 mm² per shear plane. Bolt strength grades such as property class 10.9 specify mechanical product requirements: the supplied ISO 898-1 summary lists 1,040 MPa minimum finished-bolt tensile strength under its defined test provisions. This axial value does not establish bolt shear strength or fatigue resistance for the assembled clevis.

5.2 Bolt Preload, Bolt Pretension and Clamping Force

Bolt preload (pretension) is introduced by tightening; bolt clamping force acts across the contacted joint faces. A slip critical connection must identify its effective friction faces and retained clamp force. A simplified bolt torque calculation requires a specified nut factor and surface condition; torque alone cannot reliably establish residual preload. ISO 16047 provides a torque/clamp-force test method, but thread/head friction is not automatically the clevis-face slip coefficient. Preserve torque-angle-force traces, calibration and the 48.1 kN measurement time.

VDI 2230 Blatt 1:2015-11 differentiates maximum/minimum assembly preload, required clamp load, preload loss, working stress, fatigue, interface pressure, thread checks and slip. Its Part 1 method concerns highly stressed joints with one cylindrical bolt.

F_Mmax = α_A F_Mmin

Standard basis: VDI 2230 Blatt 1:2015-11, Systematic calculation of highly stressed bolted joints, joints with one cylindrical bolt.

5.3 Joint Slip, Bolt Bearing and Bolt Shear Capacity

For transverse loading in an applicable preloaded joint, establish the friction-transfer path and retained clamp force before estimating whether contact shifts to the shank and hole. The M12 case’s idealized 14.43 kN screen is tabulated in the worked example, not demonstrated as an in-service slip threshold.

Once slip or bearing transfer occurs, review physical shear sections, bolt bearing stress, shear strength of bolts and the load-sharing model against an approved capacity basis. Property-class tensile figures alone do not supply a transverse shear allowable.

Fastener property basis: ISO 898-1:2013 is the current published edition listed by ISO for bolts, screws and studs with specified property classes; a revision project is under development.

5.4 Joint Opening, Bolt Fatigue, Thread Stripping and Preload Loss

Bolt failure analysis must separately check joint opening, joint separation, thread stripping, fatigue and preload loss even when average shear stress is moderate. These bolt failure modes interact with eccentric loading and alternating bearing reactions; fatigue can progress without bolt shear failure. A Junker vibration test assesses transverse loosening under prescribed conditions, not the durability of a rotating clevis.

Inspect fretting and hole growth as potential early indicators of cyclic joint degradation, along with bolt relaxation or embedment.

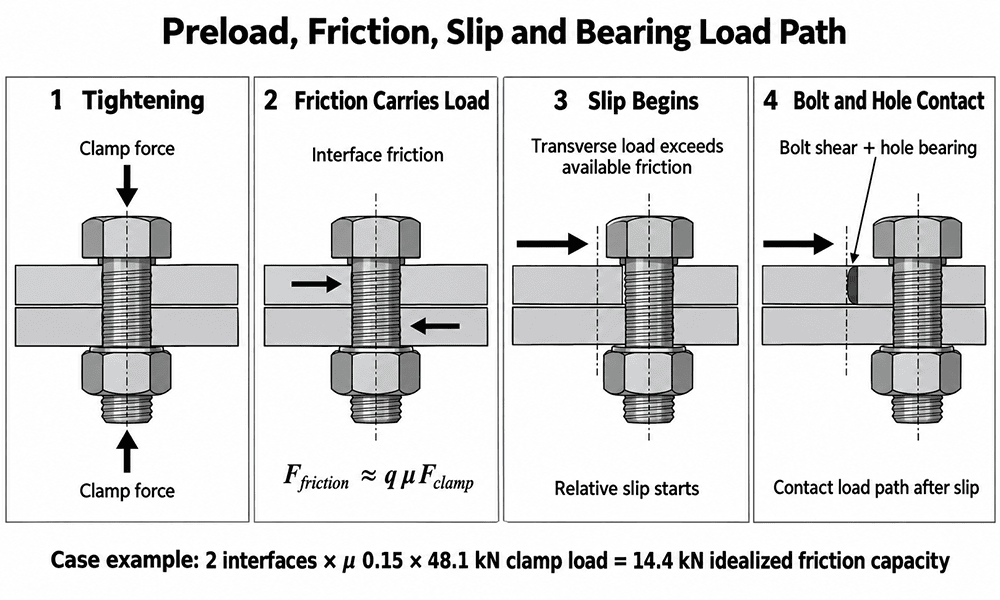

Bolted joint preload friction slip and bolt bearing load path

5.5 VDI 2230 Bolt Calculation: Scope and Boundary

VDI 2230 Blatt 1 provides a systematic analysis method for highly stressed single-bolt joints; it is neither a general shear-test standard nor the method for every pin, key or multiple-bolt pattern. Assess model assumptions before applying its friction and assembly calculations.

Impact, random load spectra, corrosion or complex articulating contact may require a validated nonlinear contact model, physical test or another governing design standard.

6. When τ = V/A Is Not Enough

6.1 Manufacturing Tolerances and Inspection for Shear-Loaded Joints

H7 hole tolerance, clearance fit, and shoulder bolt dimensions

ISO 286 defines Ø14 H7 new-hole limits of 14.000–14.018 mm. A clearance fit also needs a specified mating shaft tolerance. For illustration, Ø14 h6 spans 13.989–14.000 mm, giving H7/h6 diametral clearance from 0 to 0.029 mm; this combination is NOT a verified specification of the reported redesign. The drawing must record actual shoulder bolt dimensions, local hole tolerance, reamed hole tolerance, machining tolerance and any fit limits needed for function. CNC machining tolerance costs explains the related manufacturing decision.

True position tolerance and three-hole alignment

Individual compliant bores may still have misaligned axes. Define assembly-specific datums and true position tolerance or other justified orientation control under ISO 1101 and ISO 5459. Determine the contact state with the actual installed pin and load. Neither ISO 286 nor H7 alone specifies axis alignment, bending stress or wear life.

Drawing CTQs and inspection release

For dimensional inspection and CMM inspection, record three bore sizes, bore-axis location/orientation, ear gap, shoulder length, shaft diameter, surface condition, fixture and temperature. The reported Ø14.021 mm post-service bore is 3 μm above the H7 new-hole upper size; distinguish in-service wear from original drawing conformity. CNC prototype inspection methods explains the related manufacturing decision.

Bolt hole clearance must be evaluated over the actual shaft/bore size intervals and the installed datum condition, not inferred from a one-sided H7 callout.

CTQRequired recordMethodControlling criterion
Ø14 hole at manufactureEach new-hole diameterBore gauge/CMM and uncertainty14.000–14.018 mm drawing H7
Shoulder shaftMin/max OD and lengthMicrometer/CMMSpecified mating shaft class and revision
Bore-axis alignmentThree-hole position and orientationDatum-based CMM setupDrawing GD&T under ISO 1101 / ISO 5459
Ear geometryThickness, span, ligament and edge distanceDimensional inspectionReleased drawing and structural calculation
Bolt assemblyPreload distribution, torque, surface stateISO 16047-derived test and torque auditApproved installation procedure
Joint proof42 kN trace and lateral travelCalibrated proof load testCustomer-approved load/displacement requirements
Cyclic durabilityInitial/final diameters, wear, cycle spectrumFatigue test and wear inspectionService-life and wear acceptance criteria
ProcurementFastener batch and test reportISO 16228 evidence reviewPO, product standard and certificate type

Use the following decision table when V/A omits an important part of the load path, such as contact, clearance, eccentricity, torsion or cyclic loading.

SituationFirst-pass equationAdditional checkDecision boundary
Known direct shear planeτ = V/AMaterial or connection capacityUse when the resisting plane is clear and stress distribution is not the governing issue.
Pin or bolt with clearanceτ = V/ABearing, bending, fit, edge distanceAverage shear can be low while local hole contact controls.
Circular shaft under torqueτ = Tr/JCombined loading if presentUse torsional shear, not direct V/A.
Preloaded transverse bolted jointFriction/slip check firstPreload, residual clamp load, bearing, bolt shearDo not assume the full transverse load enters the shank before slip.
Eccentric or cyclic jointNo single scalar checkBending, opening, fatigue, fretting, contactEscalate to a fuller model, FEA or test when interactions control.

Inspection has to match the assumption. The EPOC CRAFTER case used CMM for hole position and coaxiality, a three-point bore gauge for hole diameter, a micrometer for shoulder diameter, a calibrated torque wrench, a load washer, an in-line load cell and a dial indicator. When fit or alignment affects load sharing, tight tolerance CNC machining requires clearly defined drawing characteristics and inspection methods.

7. Engineering Design Checklist for Shear-Loaded Machined Parts

7.1 Tests, Preload Monitoring, and Emerging Methods

Shear tests and drawing evidence

A shear strength test needs a specified specimen, loading fixture, force measurement and endpoint. ASTM F606/F606M single-shear results do not establish a complete double-shear clevis rating. Proof and fatigue tests require their own load history, sample size, measured response and release criterion.

Digital image correlation and smart bolts

Digital image correlation records a strain or displacement field when the surface is prepared and the camera system is calibrated. Smart bolts and ultrasonic preload-monitoring systems can inform residual-force changes if calibrated for temperature and installation. These techniques complement instead of replace a documented mechanical acceptance plan.

Applicable standards and their boundaries

The applicable requirements cover different evidence: ISO 898-1 and ASTM F606/F606M for fastener properties/tests; ISO 286 for sizes and fits; ISO 1101 and ISO 5459 for geometry/datums; ISO 16047 for tightening tests; ISO 16228 for inspection documents; VDI 2230 for qualifying preloaded connections. NASA-RP-1228 is engineering guidance, while NASA-STD-5020B is directed to spaceflight hardware.

CheckRecord or calculateEngineering decision
Load caseRecord transverse force, axial force, torque, moment, load direction, offset, cycle type and measured peak load where available.Do not size from a nominal actuator or motor rating when a measured service peak exists.
Shear planeIdentify plain shank, thread root, pin section and number of planes.Use the section that physically resists sliding or fracture.
Demand vs capacityCalculate shear stress separately from material or joint strength.Do not use tensile strength as a universal shear allowable.
Pin and holeCheck bearing stress, edge distance, clearance, alignment and deformation.A pin can remain intact while the hole grows.
Preloaded boltCheck bolt preload, clamping force, friction, residual clamp load and slip before direct bolt shear.A friction grip joint and a shear-bearing joint do not share the same first check.
Cyclic serviceCheck fretting, impact at reversal, preload loss, bolt fatigue and hole growth.A static shear strength comparison does not establish fatigue life.
InspectionSelect bore gauge, micrometer, CMM, torque audit, preload validation or proof-load displacement as needed.Measure the geometry and assembly variables used in the calculation.
EscalationUse FEA or physical testing for complex contact, significant eccentricity, nonuniform sharing, impact or safety-critical consequences.Do not make a simple formula carry assumptions it was not built to represent.

For a supplier review, the drawing and load assumptions should travel together. EPOC CRAFTER’s CNC machining for load-bearing parts page gives the manufacturing context for machined bores, shoulders, datums and inspection features that carry these design decisions into production.

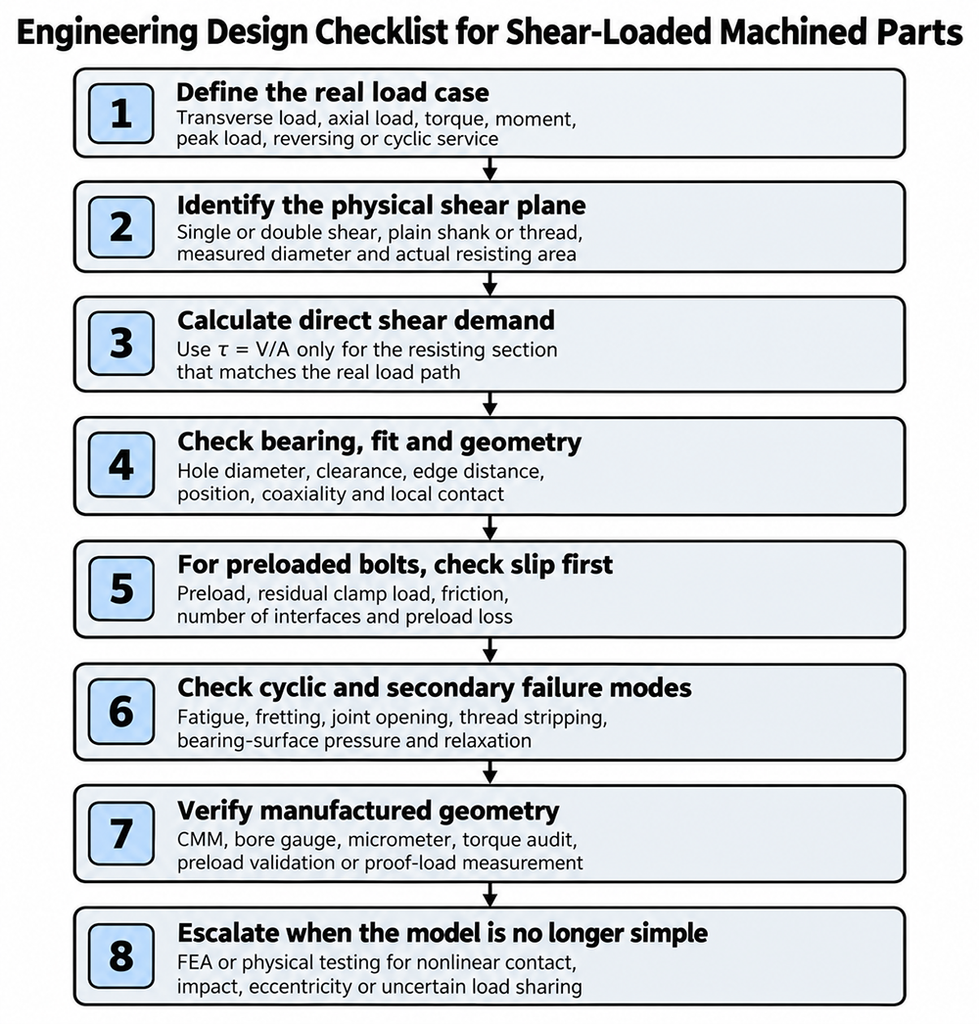

Engineering checklist for shear-loaded machined pins bolts and joints

8. Frequently Asked Questions

8.1 What Is Shear Stress?

Shear stress is force per unit area parallel to a resisting section. In direct shear, the mean value is τ = V/A, expressed in N/mm² or MPa.

8.2 How Is Shear Stress Calculated in a Bolt or Pin?

Identify the physical resisting section and applied force. For a plain round shank in one plane, A = πd²/4. The two-plane form needs verified geometry and a load-sharing assumption; check thread location separately.

8.3 What Is Single Shear vs Double Shear?

Single shear means one resisting plane; double shear means two. Unequal ear contact, bearing and pin bending can prevent the ideal two-plane model from describing a real joint.

8.4 What Is Shear Strength, and How Is It Different from Shear Stress?

Shear stress is a calculated load demand. Shear strength and allowable stress are resistance values established under a stated material/test/design basis, including the chosen safety factor.

8.5 What Is Bearing Stress in a Bolted or Pinned Joint?

Projected bearing stress uses p = F/(dt) for an idealized pin and lug, where t is local plate thickness. The actual contact pressure depends on fit, alignment and deformation.

8.6 What Is Bolt Preload, and When Does a Bolt  Carry Transverse Shear?

Bolt preload is an axial assembly force. In friction-transfer joints, retained clamp load and effective mating surfaces determine the slip screen; contact with the hole changes the load path after slip or in body-fit designs.

8.7 What Should an RFQ Specify for Custom Shoulder Bolts?

For custom shoulder bolts and precision shoulder bolts, ask the supplier for drawing revision, certified material/lot, shoulder diameter and length, heat treatment, surface finish, applicable testing and inspection records.

To answer how to calculate shear stress in a joint, start with the physical load path, then check geometry, contact, material resistance and the operating load spectrum. For how to calculate shear force, use equilibrium before dividing force by a resisting area. The documented clevis observations show how an average stress calculation can miss bearing-driven damage.
